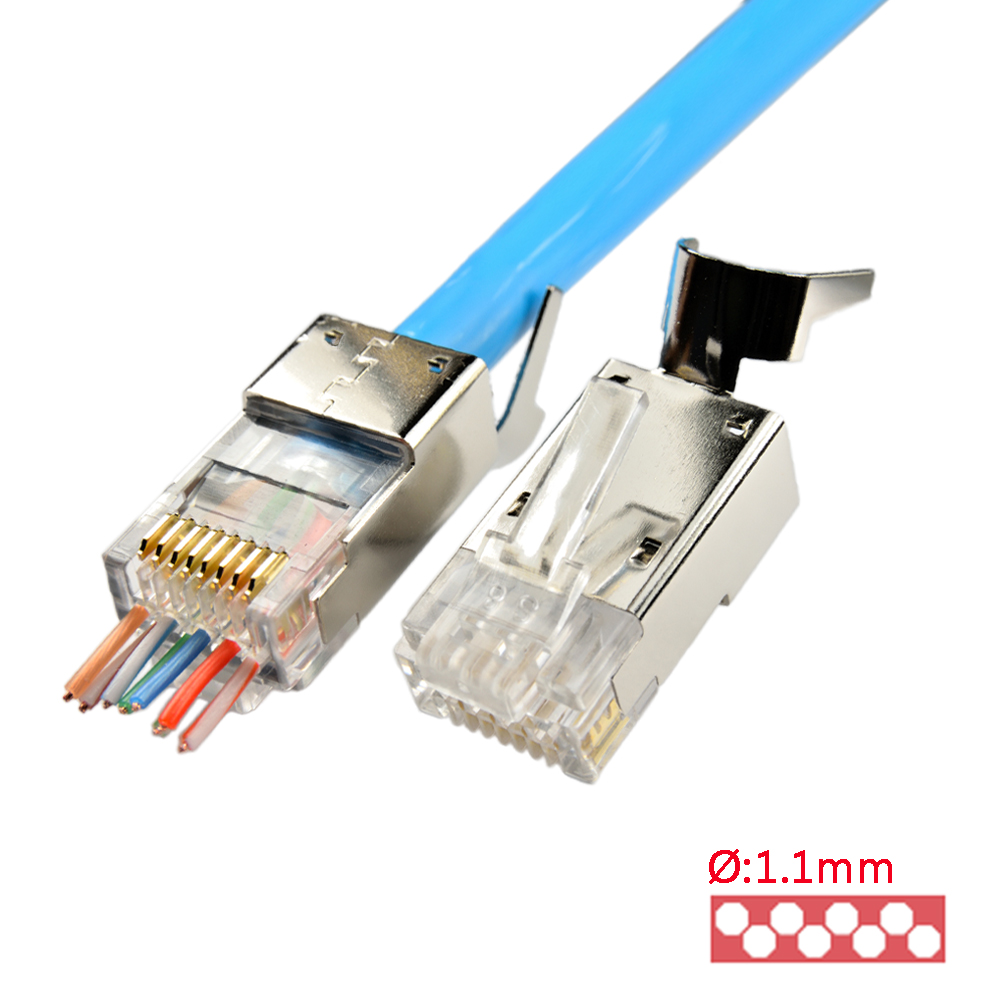

• Easy Plug Shielded with U-Shaped Strain Relief, CAT6

    Some cable can reach CAT6A and above

    RJ45 design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plug and come with high performance but do not need a load bar. Build-in Strain Relief.

    TU6 type Shielded can not crimp by Strain Relief Tab's tool.

    • Suitable for conductor OD from Ø1.0mm-1.1mm
    • Available for 23 ~ 26 AWG wire
    • U-Shape Strain Relief fro cable OD Ø 6.0mm ~ 9.0mm
    • Reducing the distance between the wire twists and contacts, performance is optimized
    • Simple one-piece design eliminates loading bar and liners
    • Easily verify the proper wiring order
    • Shielded external groun

    PDF





    Relation Product

    Cover



    SR09-X

    Ø7.5~8.5mm

    SR0812

    Ø5.5~7.0mm






    Crimping Tools




    Assembly Instruction
